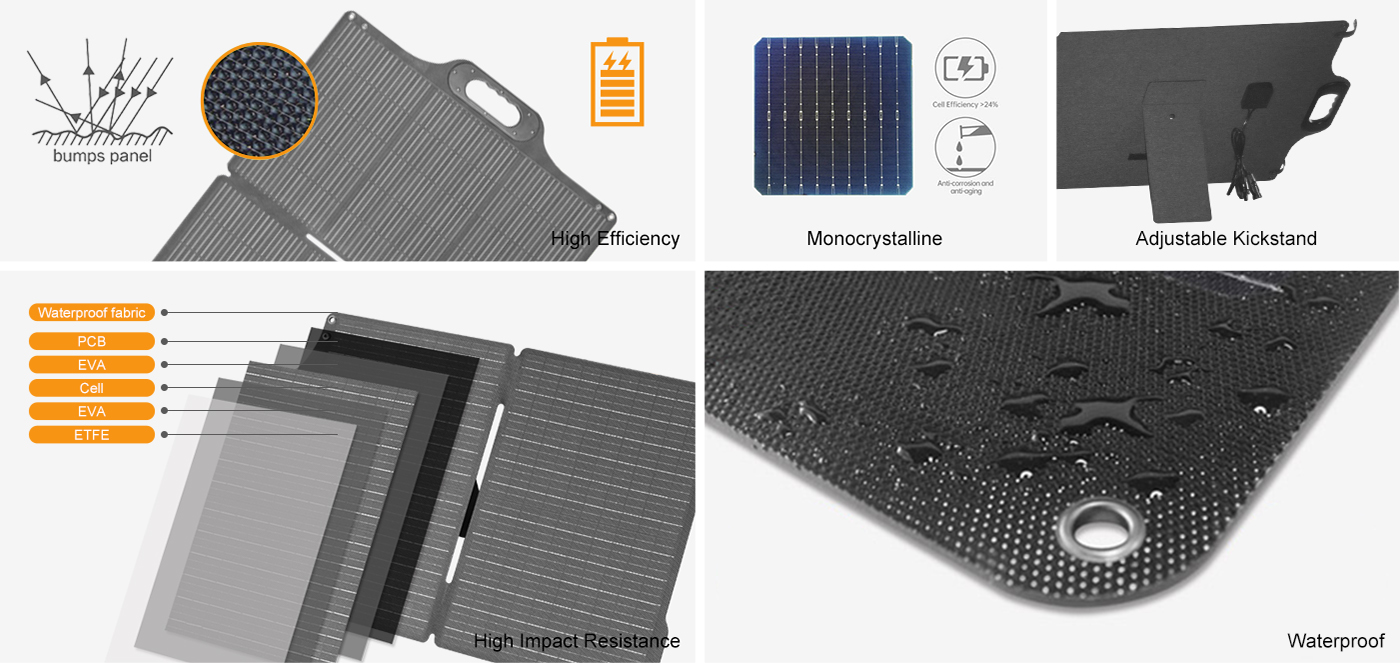

ETFE Integrated Foldable Solar Panel offer a ready-to-use, all-in-onesolution. They come with permanently integrated folding stands thatallow easy module installation at a 45" angle in any location. Thismakes them ideal for travel. ETFE integrated molding technologymakes the panels waterproof up to lP67, so you no longer have toworry about forgetting to put them away on rainy days.
Certifications
Integrated Foldable Solar Panel was tested for water resistance. Under the environmental conditions of temperature: 25 ℃, humidity: 66 %RH, andnormal atmospheric pressure. The sample under test was fully immersed in water as specified. The duration of the test was 30 minutes. Test resultsfor a small amount of water into the phenomenon; The waterproof effect far exceeds the same type of products.
Its final output test performance is still well, the product passed CE, FCC and ROHS.
Product Specifications
SR-Fold-IG100W | SR-Fold-IG200W | SR-Fold-IG300W | SR-Fold-IG400W | |
Model | 图片 | 图片 | 图片 | 图片 |
Folding Number | 2pcs | 4pcs | 4pcs | 4pcs |
Cells Efficiency | >23.2% | >23.2% | >23.2% | >23.2% |
Max Power(Wp) | 100W | 200W | 300W | 400W |
Max Power Voltage/Vmp | 19.2V | 36V | 34.8V | 46.4V |
Max Power Current/Imp | 5.2A | 5.55A | 8.6A | 8.6A |
Open Circuit Voltage/Voc | 23V | 43.2V | 41.7V | 55.6V |
Short Circuit Current/Isc | 5.6A | 6.10A | 9.2A | 9.2A |
Weight | 2.5kg | 4.8kg | 7.95kg | 10.65kg |
Outlet | MC4 / Anderson / DC | MC4 / Anderson / DC | MC4 / Anderson / DC | MC4 / Anderson/ DC |
Expand Size | 656*452*30mm | 656*452*45mm | 656*642*45mm | 868*644*45mm |
Folded Size | 912*656*25mm | 1690*656*25mm | 2446*656*25mm | 2452*868*25mm |
Max Power Tolerance | ±3% | ±3% | ±3% | ±3% |
Laminating | Integrated Solar Panel | Integrated Solar Panel | Integrated Solar Panel | Integrated Solar Panel |
Color | Grey | Grey | Grey | Grey |
Remarks | SUNRAY offer customize service,please refer to our website or ask workers for more sizes and the latest parameters. | |||
Simple Connection - Setting up your solar blanket
You can find MC4 connectors on the back of the blanket solar panels . However, if your portable energy storage device has a different interface, such as XT60, DC5521, or others, there’s no need to worry. You can use Anderson connectors for conversion to connect it to the storage interface you require.Find the MC4 behind the solar panel
Connect the solar panel and power house with a solar charging cable（included）
Your Ultimate Outdoor Travel Companion
Designed for adventurers seeking sustainable power on the go, foldable solar panels combine lightweight portability with high-efficiency energy harvesting, making them ideal for outdoor travel.
If you are a traveling, RVing, or camping enthusiast, don't miss this solar panel. It will bring a lot of convenience so that you can continue traveling without having to worry about running out of power.
Compact folding design, high-efficiency cells, and weather-resistent durability ensure rapid charging for power station, Equipped with MC4 connectors and adapters, they seamlessl integrate with solar generators or battery systems, ideal for off-grid setups.
Application
---We are producing customized products for more application scenarios---
