* The product is laminated using composite film material and has highimpact resistance.
* Even when stepped on, the product's performance and power outputwill not be affected.
* Trust in long-term reliability. Our advanced design and materials allowus to offer a 10-year warranty, giving you and your customers peace of mind.
Certifications

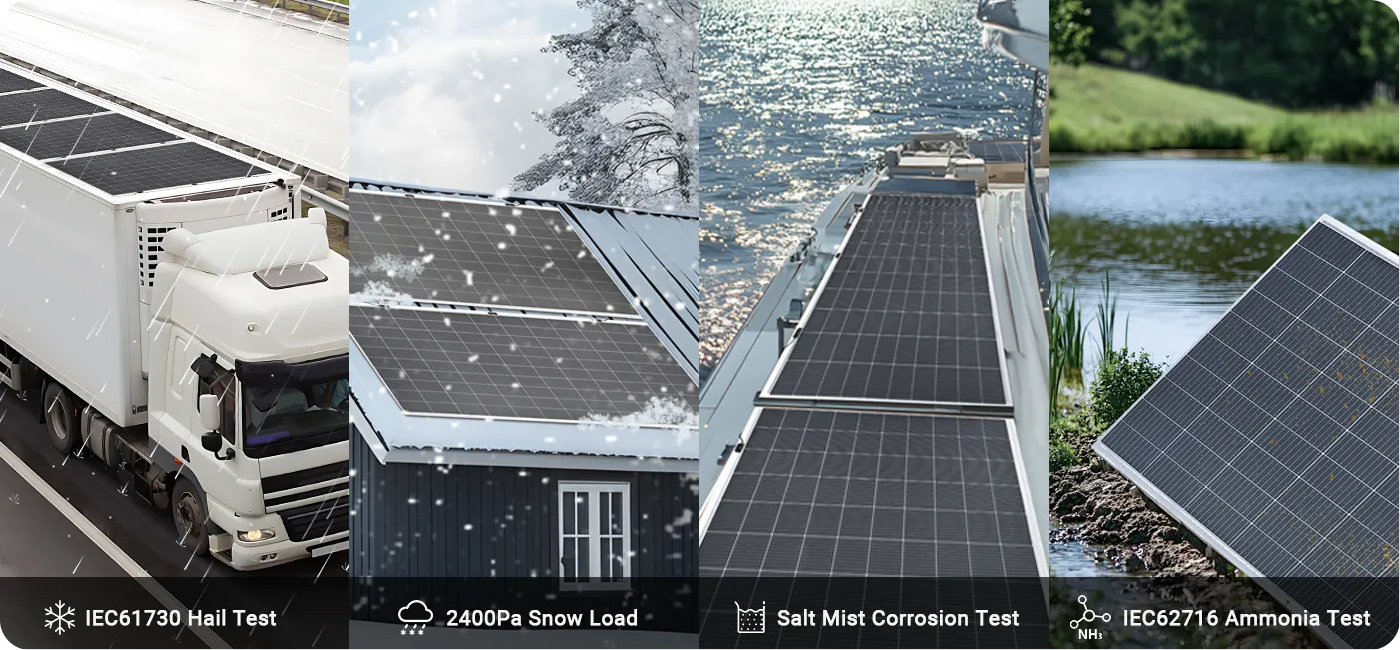

All flexible solar panel fully certified with EMC, LVD, FCC and ROHS standards, ensuring top-tier safety and environmental compliance. All solar panels undergo rigorous testing, including a 49-day durability test and over 8,000 step cycles, proving their ability to maintain stable output under extreme conditions.
With these certifications and testing, you can trust that Sunray delivers consistent, high-quality performance, meeting the most stringent industry standards.
Product Specifications
Model | Maximum Power/Pmax | Operating Voltage/Vmp | Operating Current/Imp | Open Circult Voltage/Voc | Short Circuit Current/Isc | Cell Efficiency | Dimension | Weight |
SR-Flex-HF55W | 55W | 18V | 3.05A | 21.6V | 3.35A | 23.5% | 415*815*3MM | / |
SR-Flex-HF80W | 80W | 20V | 4.00A | 24V | 4.4A | 23.5% | 600*810*3MM | / |
SR-Flex-HF100W | 100W | 16.5V | 6.06A | 19.8V | 6.66A | 23.5% | 600*985*3MM | / |
SR-Flex-HF120W | 120W | 20V | 6.00A | 24V | 6.6A | 23.5% | 600*1175*3MM | / |
SR-Flex-HF140W | 140W | 23V | 6.08A | 27.6V | 6.68A | 23.5% | 600*1360*3MM | / |
SR-Flex-HF165W | 165W | 26V | 6.34A | 31.2V | 6.97A | 23.5% | 600*1545*3MM | / |
SR-Flex-HF190W | 190W | 30V | 6.33A | 36V | 6.96A | 23.5% | 785*1355*3MM | / |
SR-Flex-HF220W | 220W | 36V | 6.11A | 43.2V | 6.72A | 23.5% | 785*1550*3MM | / |
SR-Flex-HF245W | 245W | 40V | 6.12A | 48V | 6.73A | 23.5% | 785*1725*3MM | / |
SR-Flex-HF270W | 270W | 44V | 6.13A | 52.8V | 6.74A | 23.5% | 970*1550*3MM | / |
SR-Flex-HF300W | 300W | 50V | 6.00A | 60V | 6.6A | 23.5% | 970*1735*3MM | / |
SR-Flex-HF335W | 335W | 55V | 6.09A | 66V | 6.69A | 23.5% | 970*1920*3MM | / |
Proven Toughness

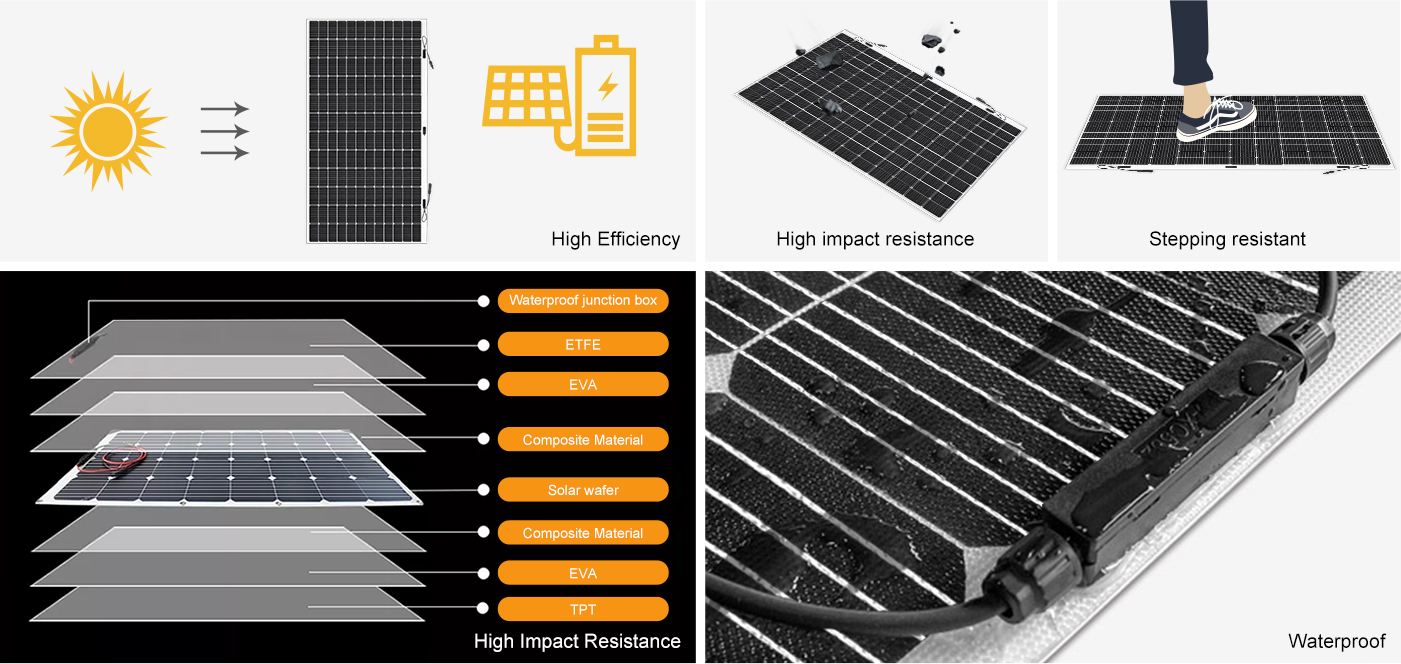

Used composite materials with high bending modulus, strong bending strength, and impact resistance to ensure even stress distribution on the solar cells during bending or deformation, preventing micro-cracks.
Backed by a 10-year warranty, they’re designed to withstand the toughest challenges.

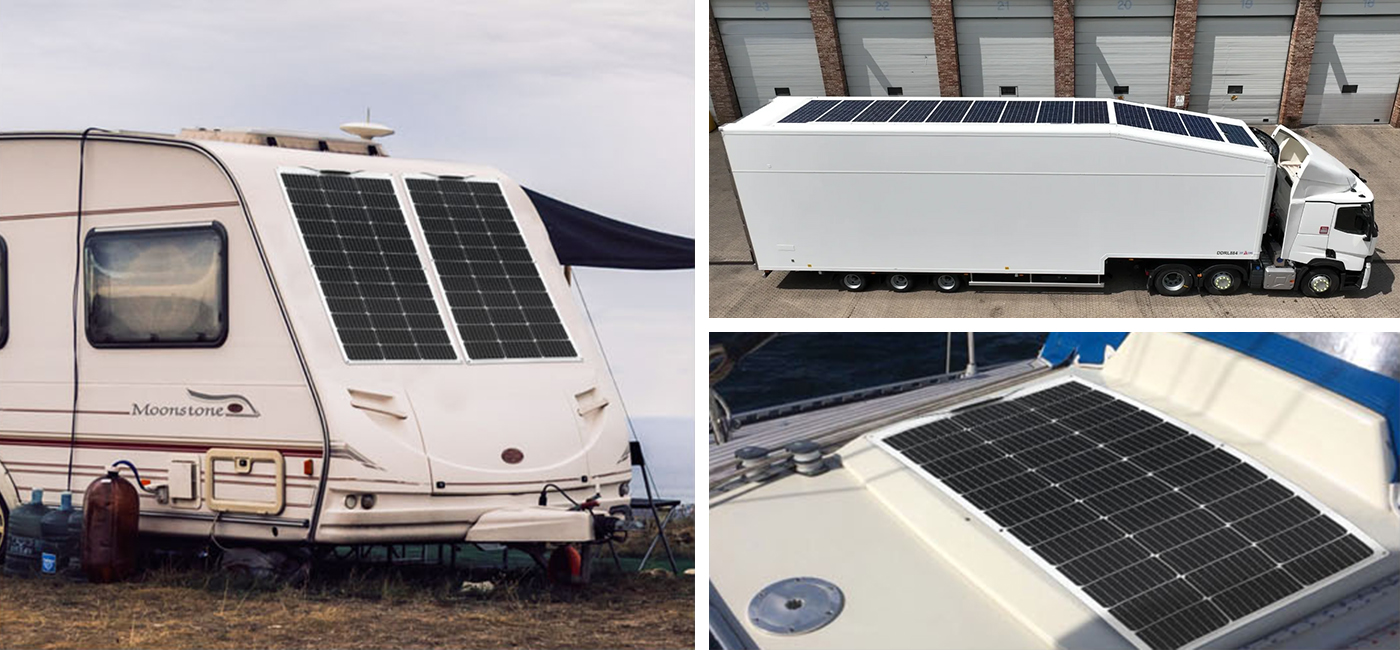

Outdoor Travel
Crack-Resistant flexible solar panels are versatile. Whether you're RVing, camping, or sailing, these solar panels can be a reliable partner in powering your power station and electronic devices.
The panels are compatible with lead-acid, lithium-ion ternary, and LiFePO4 batteries. Connects directly to solar-compatible devices with preinstalled connectors.If you are a traveling, RVing, or camping enthusiast, don't miss this solar panel. It will bring a lot of convenience so that you can continue traveling without having to worry about running out of power.
Wth a conversion efficiency of 23%, this solar panels deliver exceptional performance, thanks to the use of high-eficiency monocrystaline solar cells and high-strength composite film materilas.The composite materials minimize the impact of elevated impact on power output, nsuring excellent energy yield.
Application
---We are producing customized products for more application scenarios---
