Use the most efficient solar cells from U.S SunPower Company, providemore power in a limited space, max power can reach 400Watt. ETFEsurface material that is resistant to heat, corrosion, and weatheringThey are suitable for charging 12-volt batteries. Multiple panels can beconnected in series to charge12/24/48 volt batteries.
Certifications
All flexible solar panel fully certified with EMC, LVD, FCC and ROHS standards, ensuring top-tier safety and environmental compliance. All the solar panels undergo rigorous testing, including a 49-day durability test and over 8,000 step cycles, proving their ability to maintain stable output under extreme conditions.
With these certifications and testing, you can trust that Sunray delivers consistent, high-quality performance, meeting the most stringent industry standards.
Product Specifications
|
Model |
Maximum Power/Pmax |
Operating Voltage/Vmp |
Operating Current/Imp |
Open Circult Voltage/Voc |
Short Circuit Current/Isc |
Cell Efficiency |
Dimension |
Weight |
|
SR-Flex-SP20W |
20W |
20V |
1.00A |
24V |
1.10A |
24% |
290*455*3MM |
/ |
|
SR-Flex-SP45W |
45W |
20V |
2.25A |
24V |
2.47A |
24% |
290*830*3MM |
/ |
|
SR-Flex-SP55W |
55W |
18V |
3.05A |
21.6V |
3.35A |
24% |
545*565*3MM |
/ |
|
SR-Flex-SP65W |
65W |
20V |
3.25A |
24V |
3.57A |
24% |
420*820*3MM |
/ |
|
SR-Flex-SP100W |
100W |
16V |
6.25A |
19.2V |
6.87A |
24% |
550*935*3MM |
/ |
|
SR-Flex-SP120W |
120W |
18V |
6.66A |
21.6V |
7.32A |
24% |
550*1055*3MM |
/ |
|
SR-Flex-SP135W |
135W |
20V |
6.75A |
24V |
7.42A |
24% |
550*1185*3MM |
/ |
|
SR-Flex-SP150W |
150W |
22V |
6.81A |
26.4V |
7.49A |
24% |
550*1315*3MM |
/ |
|
SR-Flex-SP165W |
165W |
25V |
6.6A |
30V |
7.26A |
24% |
550*1440*3MM |
/ |
|
SR-Flex-SP185W |
185W |
28.5V |
6.49A |
34.2V |
7.13A |
24% |
675*1315*3MM |
/ |
|
SR-Flex-SP200W |
200W |
30V |
6.66A |
36V |
7.32A |
24% |
800*1190*3MM |
/ |
|
SR-Flex-SP225W |
225W |
34V |
6.61A |
40.8V |
7.27A |
24% |
800*1315*3MM |
/ |
|
SR-Flex-SP265W |
265W |
40V |
6.62A |
48V |
7.28A |
24% |
800*1560*3MM |
/ |
|
SR-Flex-SP310W |
310W |
46V |
6.73A |
55.2V |
7.40A |
24% |
930*1560*3MM |
/ |
|
SR-Flex-SP360W |
360W |
54V |
6.66A |
64.8V |
7.32A |
24% |
930*1815*3MM |
/ |
|
SR-Flex-SP385W |
385W |
58V |
6.63A |
69.6V |
7.29A |
24% |
930*1945*3MM |
/ |
Why SUNPOWER Cells?

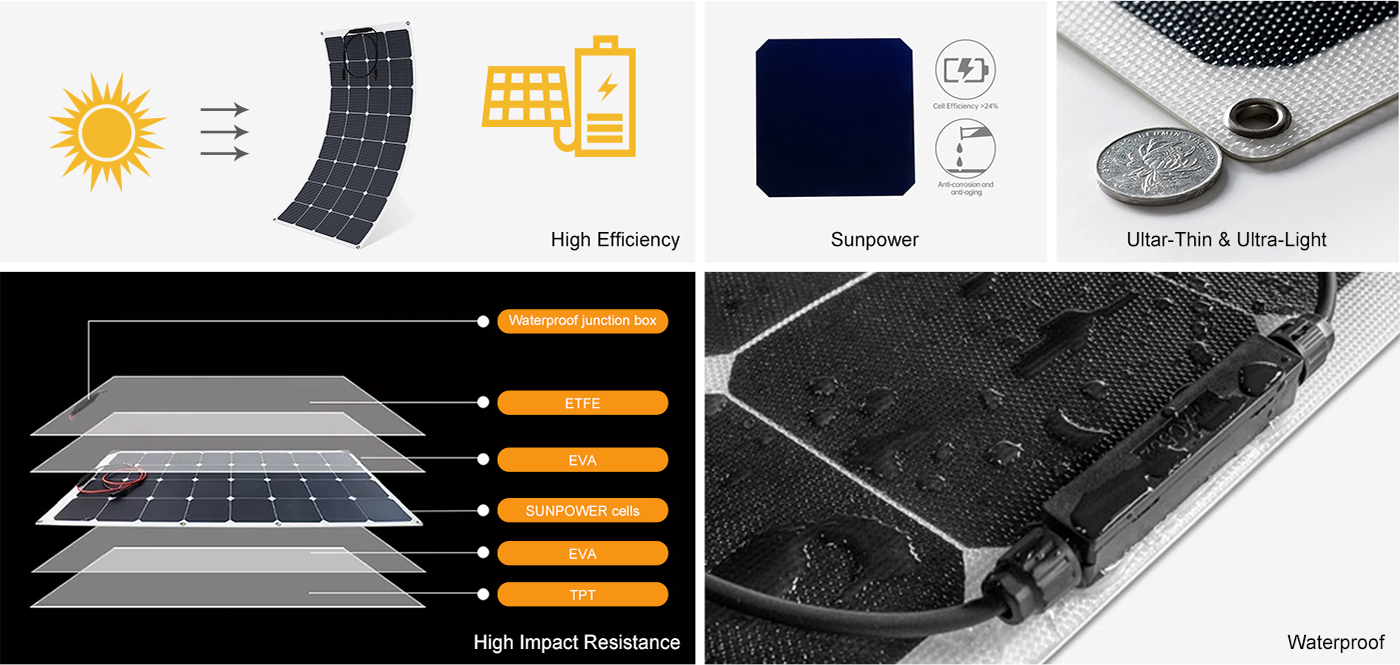

SUNPOWER cells is the most suitable cells for the production of flexible panels, it is produced by the U.S.SUNPOWER company, the biggest difference between it and normal cells is that its surface is covered with a layer of precision copper mesh，the back-contact design can achieve higher sunlight utilization on the front side. So SUNPOWER Flexible solar panels colect more energy per square meter and reduce energy loss due to shading.

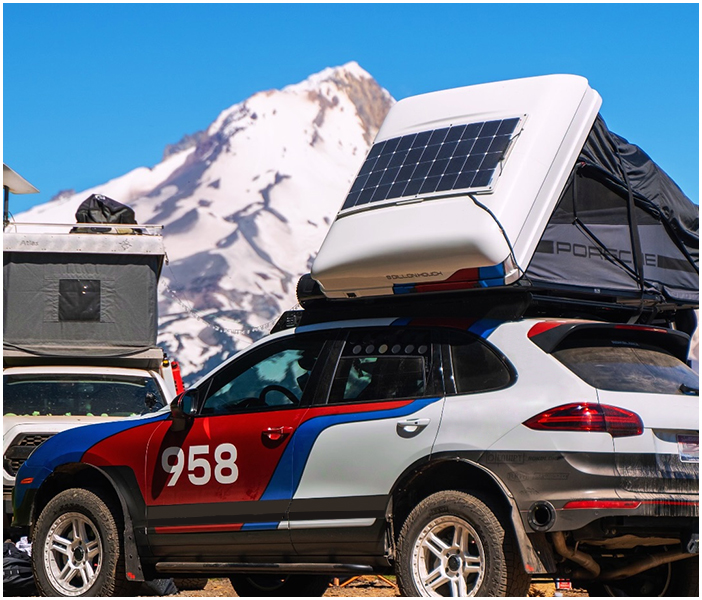

Outdoor Travel

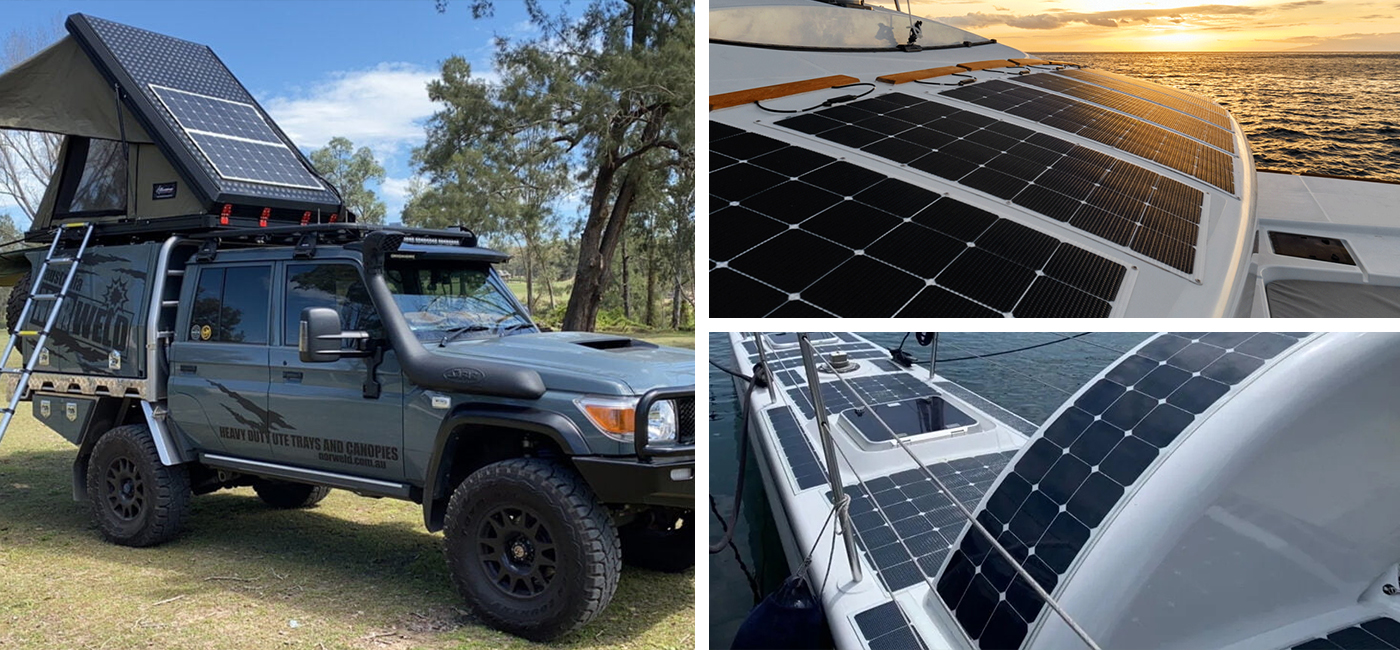

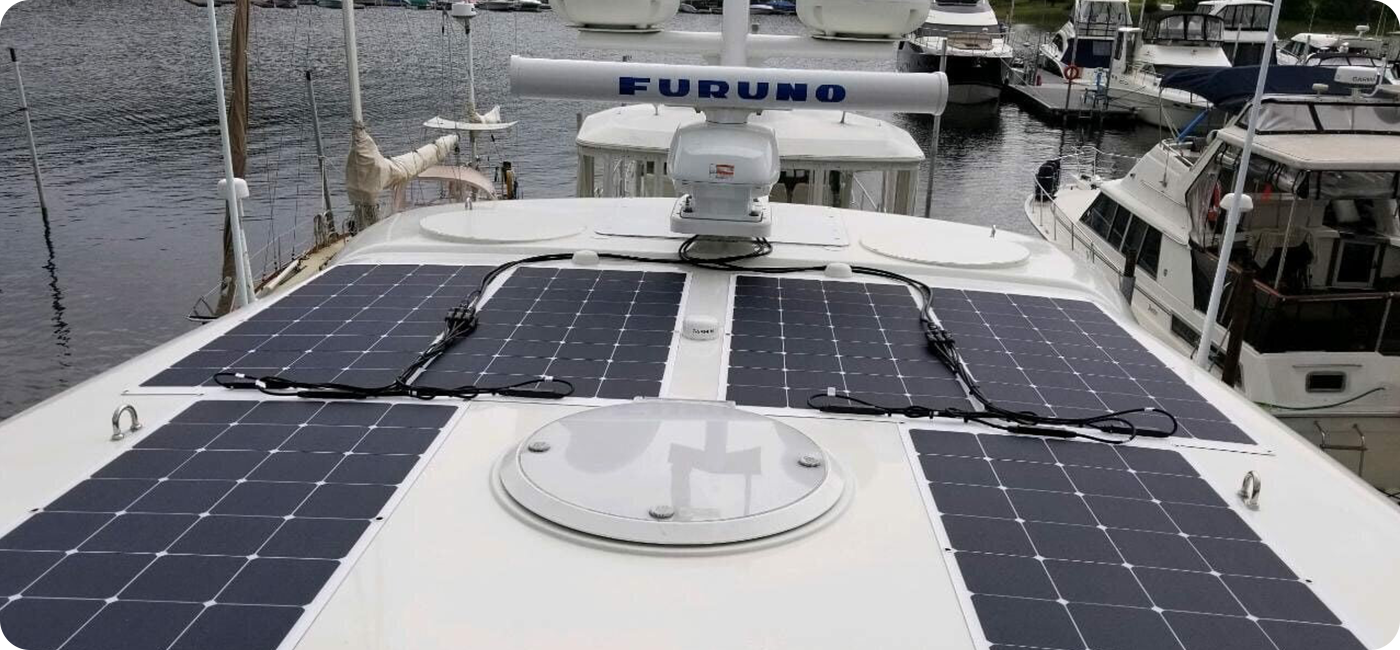

SUNPOWER flexible solar panels are versatile. Whether you're RVing, camping, or sailing, these solar panels can be a reliable partner in powering your power station and electronic devices. The panels are compatible with lead-acid, lithium-ion ternary, and LiFePO4 batteries. Connects directly to solar-compatible devices with preinstalled connectors.
If you are a traveling, RVing, or camping enthusiast, don't miss this solar panel. It will bring a lot of convenience so that you can continue traveling without having to worry about running out of power.
Use Sunpower maxeon cells with a conversion efficiency of 24%, the excellent low-light performance let you
don't have to worry

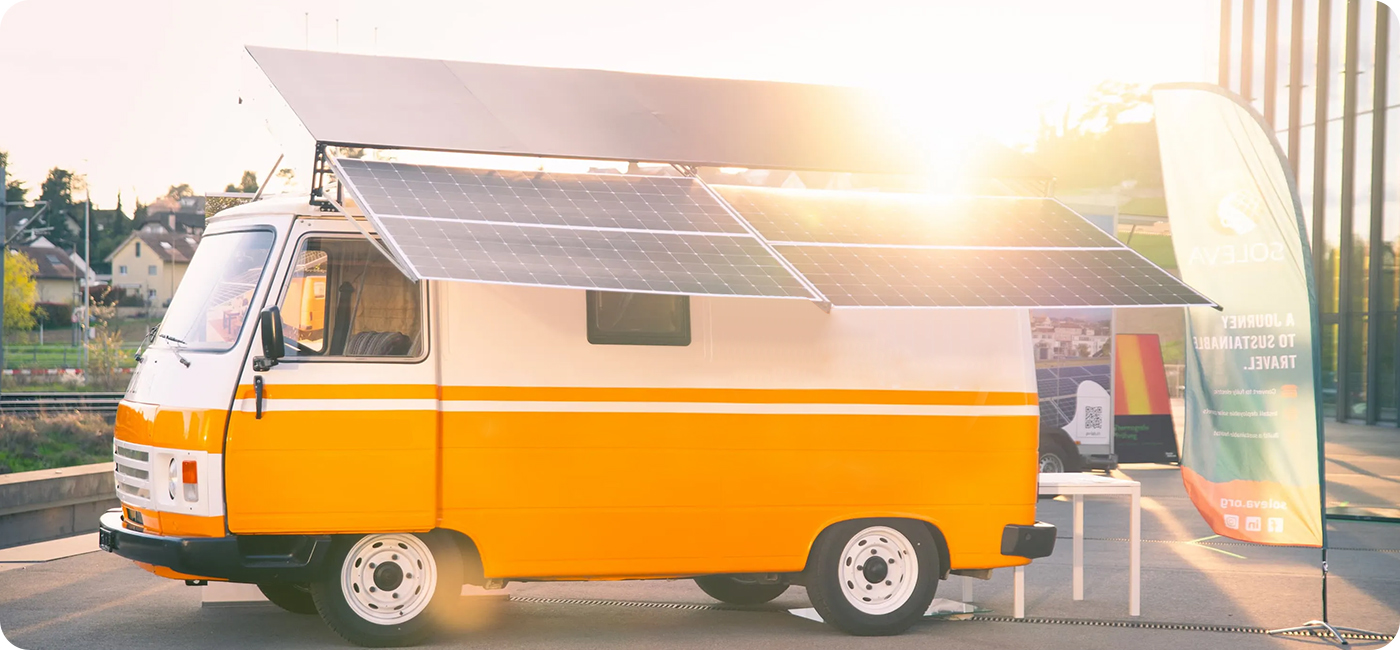

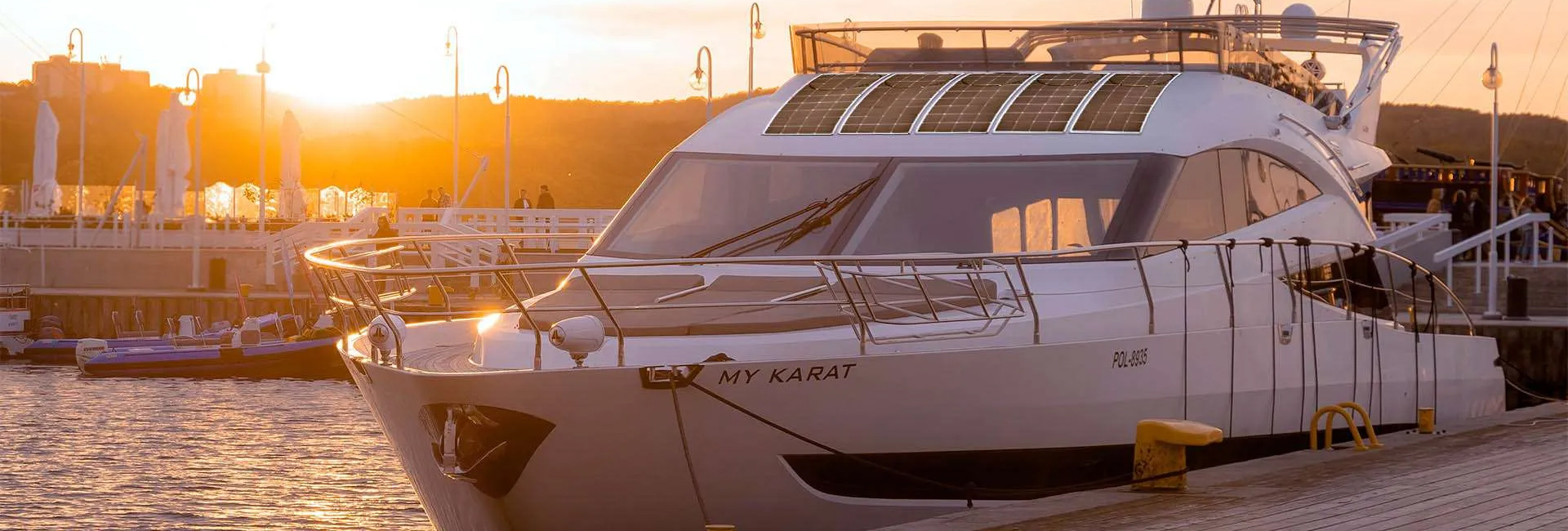

about electricity even on cloudy days. Suitable for caravans, RVs, yachts, BlPVs,
camping, etc
Application
---We are producing customized products for more application scenarios---
