We understand that end customers may use these solar panels indifferent scenarios, such as light bulbs, cameras, street lights, gardens,RVs, etc, and they will have different requirements for the power andsize of the products. Therefore, in order to make it easier for ourcustomers to sell and install, we provide customization of 5W-300Wsolar panels, any size and voltage can be customized.
SUNRAY ensures that each product uses grade A materials and 100%tested before shipment, so we provide a 25-year output warranty foreach module.
Certifications
All flexible solar panel fully certified with EMC, LVD, FCC and ROHS standards, ensuring top-tier safety and environmental compliance. All solar panels undergo rigorous testing, including a 49-day durability test and over 8,000 step cycles, proving their ability to maintain stable output under extreme conditions.
With these certifications and testing, you can trust that Sunray delivers consistent, high-quality performance, meeting the most stringent industry standards.
Product Specifications
|
Model |
Maximum Power/Pmax |
Operating Voltage/Vmp |
Operating Current/Imp |
Open Circult Voltage/Voc |
Short Circuit Current/Isc |
Cell Efficiency |
Dimension |
Weight |
|
SR-M10W |
10W |
19.8V |
0.51A |
23.76V |
0.56A |
22.5% |
225*345*18MM |
/ |
|
SR-M20W |
20W |
19.8V |
1.01A |
23.76V |
1.11A |
22.5% |
400*345*25MM |
/ |
|
SR-M30W |
30W |
19.8V |
1.52A |
23.76V |
1.67A |
22.5% |
530*345*25MM |
/ |
|
SR-M50W |
50W |
19.8V |
2.53A |
23.76V |
2.78A |
22.5% |
530*510*25MM |
/ |
|
SR-M60W |
60W |
19.8V |
3.03A |
23.76V |
3.33A |
22.5% |
670*510*30MM |
/ |
|
SR-M80W |
80W |
18.15V |
4.41A |
21.78V |
4.85A |
22.5% |
630*670*30MM |
/ |
|
SR-M100W |
100W |
18V |
5.56A |
21.6V |
6.12A |
22.5% |
760*670*30MM |
/ |
|
SR-M120W |
120W |
19.8V |
6.06A |
23.76V |
6.67A |
22.5% |
910*670*30MM |
/ |
|
SR-M150W |
150W |
18V |
8.33A |
21.6V |
9.16A |
22.5% |
1135*670*30MM |
/ |
|
SR-M165W |
165W |
19.8V |
8.33A |
23.76V |
9.16A |
22.5% |
1220*670*30MM |
/ |
|
SR-M180W |
180W |
21.6V |
8.33A |
25.92V |
9.16A |
22.5% |
1320*670*30MM |
/ |
|
SR-M200W |
200W |
24V |
8.33A |
28.8V |
9.16A |
22.5% |
1110*880*30MM |
/ |
|
SR-M250W |
250W |
18V |
13.89A |
21.6V |
15.28A |
22.5% |
1530*760*30MM |
/ |
|
SR-M300W |
300W |
38V |
7.89A |
45.6V |
8.68A |
22.5% |
1640*880*30MM |
/ |
Durability and Diverse Applications

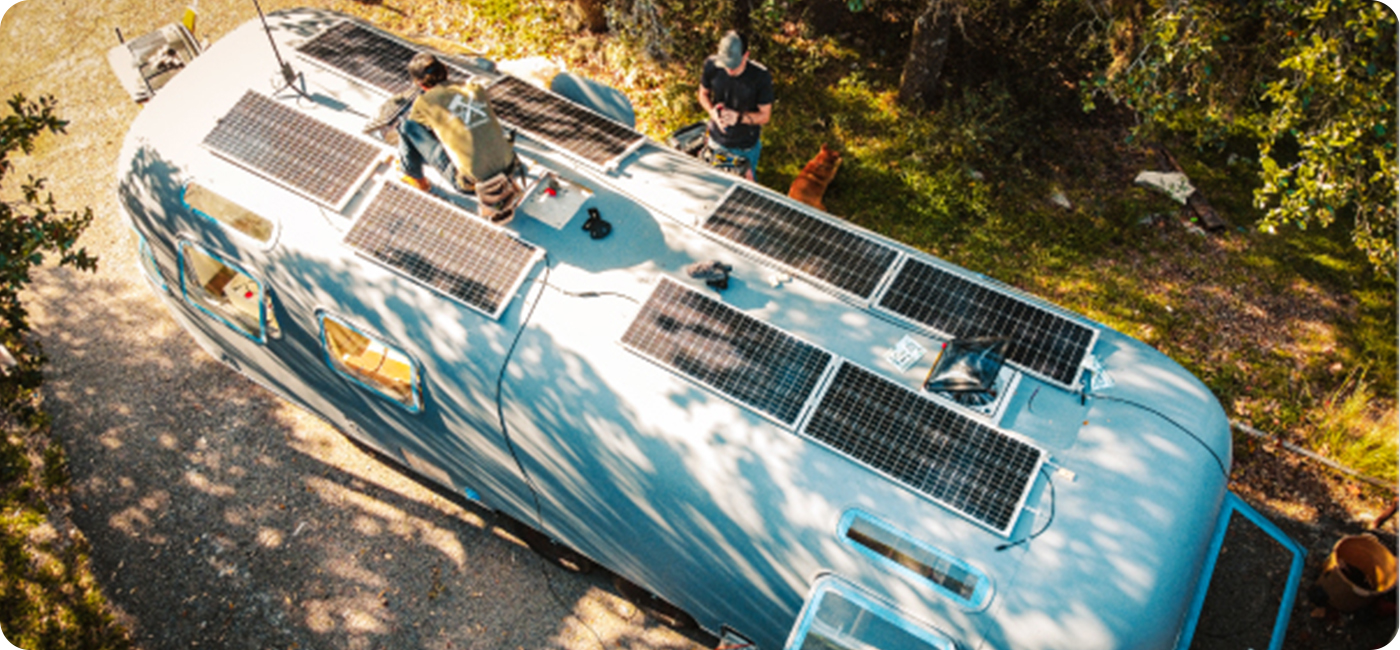

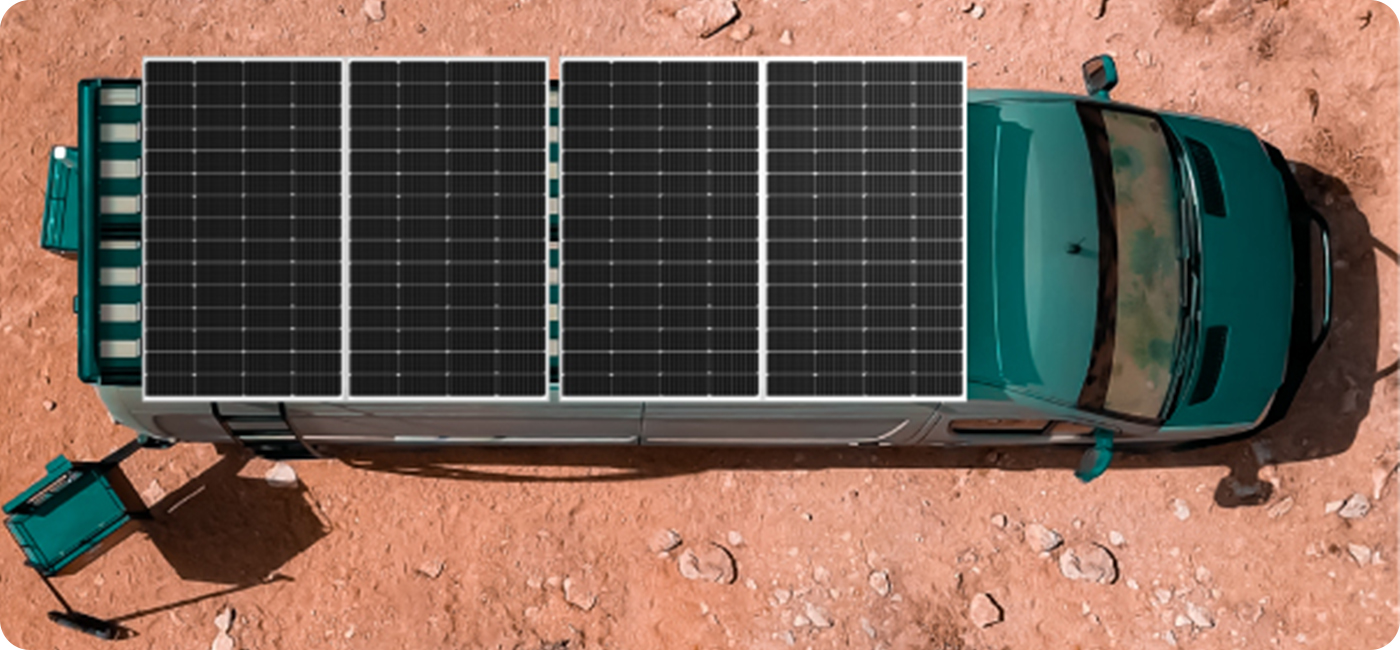

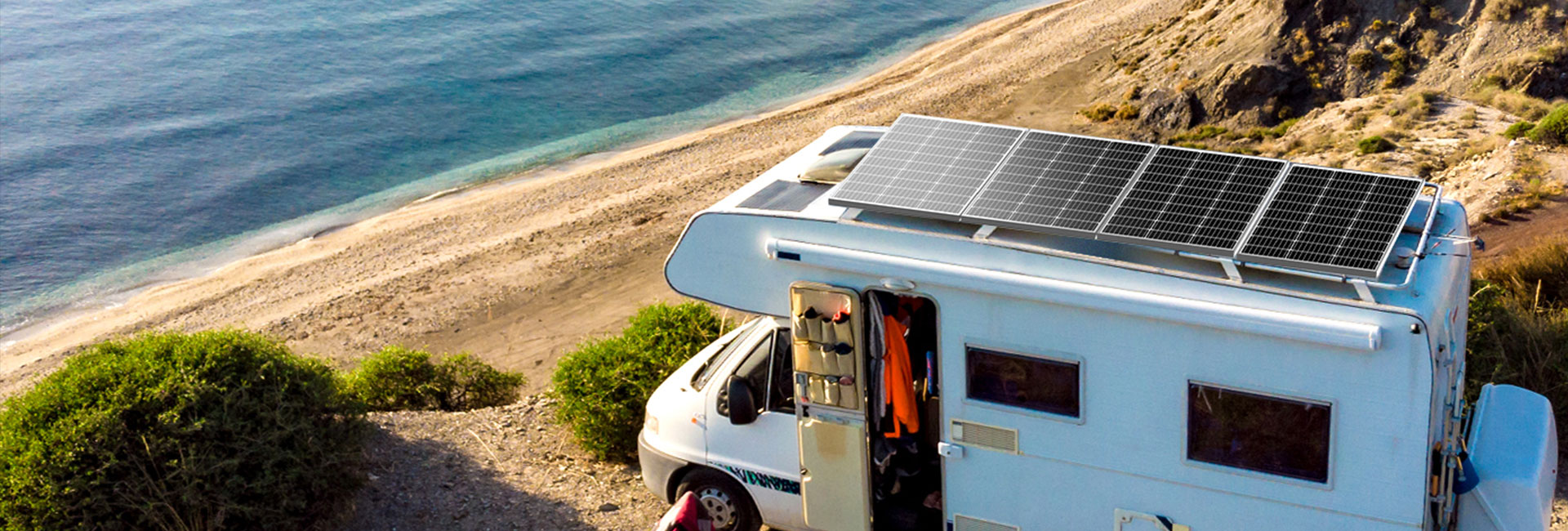

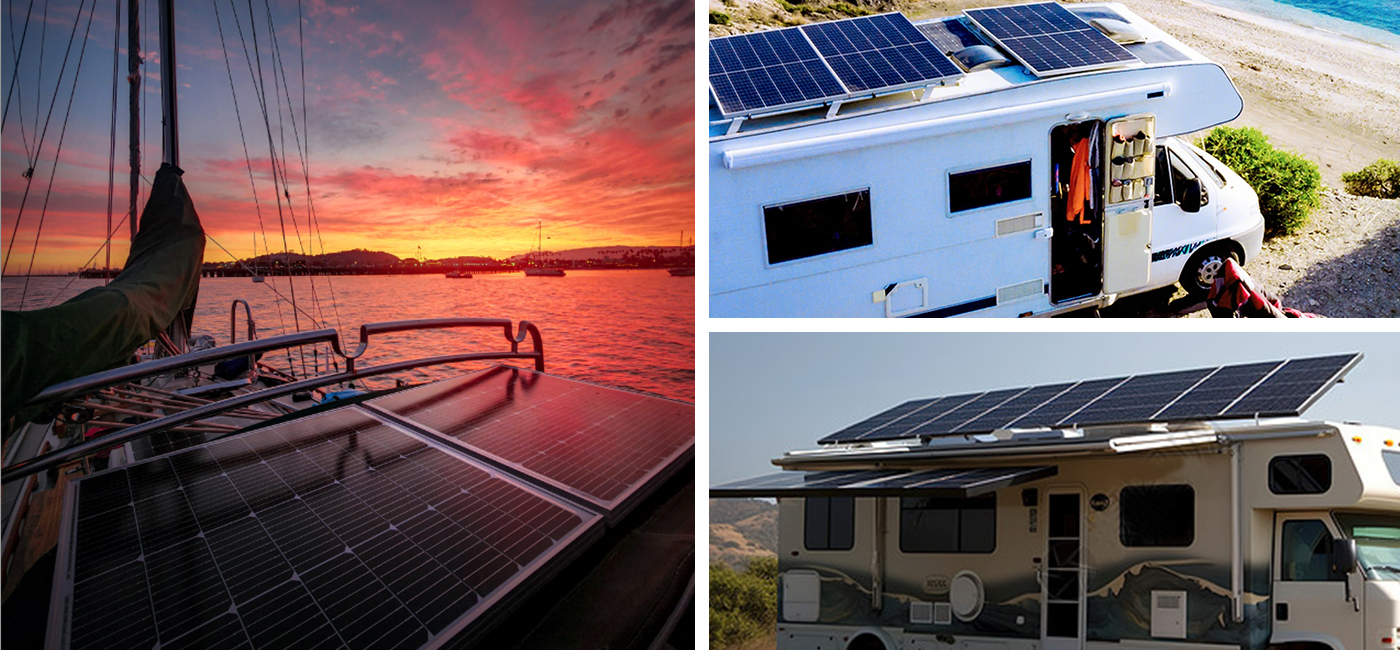

Mono crystalline solar modules comply with IEC industry standard certification, offering a 10-year warranty and a 25-year lifespan. Glass solar panels find extensive applications in various scenarios to meet diverse energy needs. From off-grid adventures like camping, RV trips, and boating, to sustainable power solutions for residential rooftops, livestock farming, greenhouses, and farms, Glass solar panels deliver reliable and efficient performance.
Environmentally Friendly
Unlike traditional generators, solar panels do not emit harmful gases or smoke, making them very eco-friendly. Additionally, they require low to no maintenance. Using solar panels can save you money while also protecting the environment.
Embrace the future of energy independence by harnessing sunlight into clean, renewable power. Solar panels reduce carbon footprints, lower electicity bills, and seamlessly integrate into rooftops or dally life . With low maintenance and long-term savings, adopt solar technology today for a sustainable. resilient lifestyle powered bv nature's endless energy
Application
---We are producing customized products for more application scenarios---
