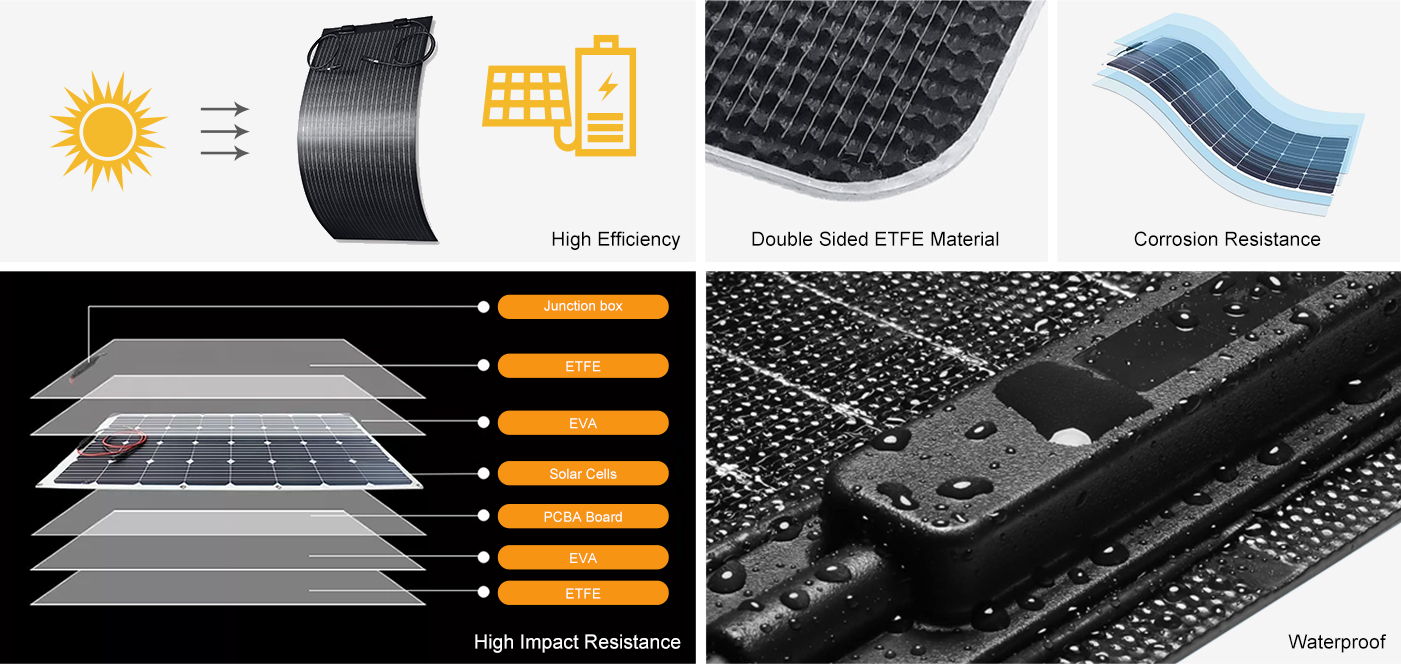

Double-sided ETFE panel is resistant to heat, corrosion, weathering.and weathering, greatly extending the life of the panels. In addition, itsunique texture design can reduce the reflection of sunlight and absorbmore sunlight. The backsheet use PCB board as the substrate, whichhas lower bending degree than ordinary flexible solar panel. lf youneed a lightweight but not curved solar panel, this will be your bestchoice.
Certifications
All flexible solar panel fully certified with EMC, LVD, FCC and ROHS standards, ensuring top-tier safety and environmental compliance. All solar panels undergo rigorous testing, including a 49-day durability test and over 8,000 step cycles, proving their ability to maintain stable output under extreme conditions.
With these certifications and testing, you can trust that Sunray delivers consistent, high-quality performance, meeting the most stringent industry standards.
Product Specifications
Model | Maximum Power/Pmax | Operating Voltage/Vmp | Operating Current/Imp | Open Circult Voltage/Voc | Short Circuit Current/Isc | Cell Efficiency | Dimension | Weight |
SR-Flex-MF50W | 50W | 20V | 2.5A | 24V | 2.75A | 23.5% | 405*625*3MM | / |
SR-Flex-MF100W | 100W | 23V | 4.34A | 27.6V | 4.77A | 23.5% | 405*740*3MM | / |
SR-Flex-MF135W | 135W | 20V | 6.75A | 24V | 7.42A | 23.5% | 590*1165*3MM | / |
SR-Flex-MF160W | 160W | 23V | 6.95A | 27.6V | 7.64A | 23.5% | 590*1350*3MM | / |
SR-Flex-MF180W | 180W | 26V | 6.92A | 31.2V | 7.61A | 23.5% | 775*1165*3MM | / |
SR-Flex-MF200W | 200W | 30V | 6.66A | 36V | 7.32A | 23.5% | 775*1350*3MM | / |
Let's go together

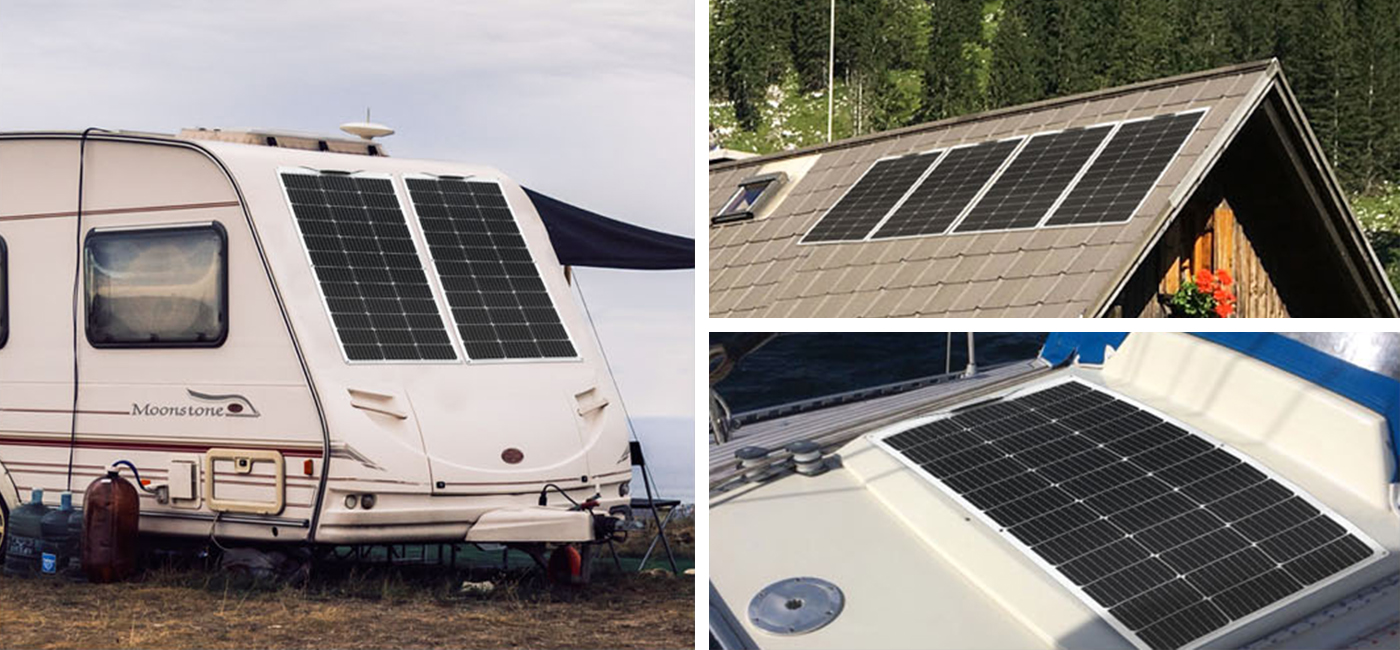

SUNRAY double-sided ETFE flexible solar panels are easy to install. The pre-drilled holes on the corners of the solar panel help to mount it on your vehicle, boat, RV, or anywhere else you need.
And double-sided ETFE laminated outer film with high weather resistance, high salt spray resistance, high corrosion resistance, high aging resistance, and good light transmission to extend the life of panels.
Outdoor Travel

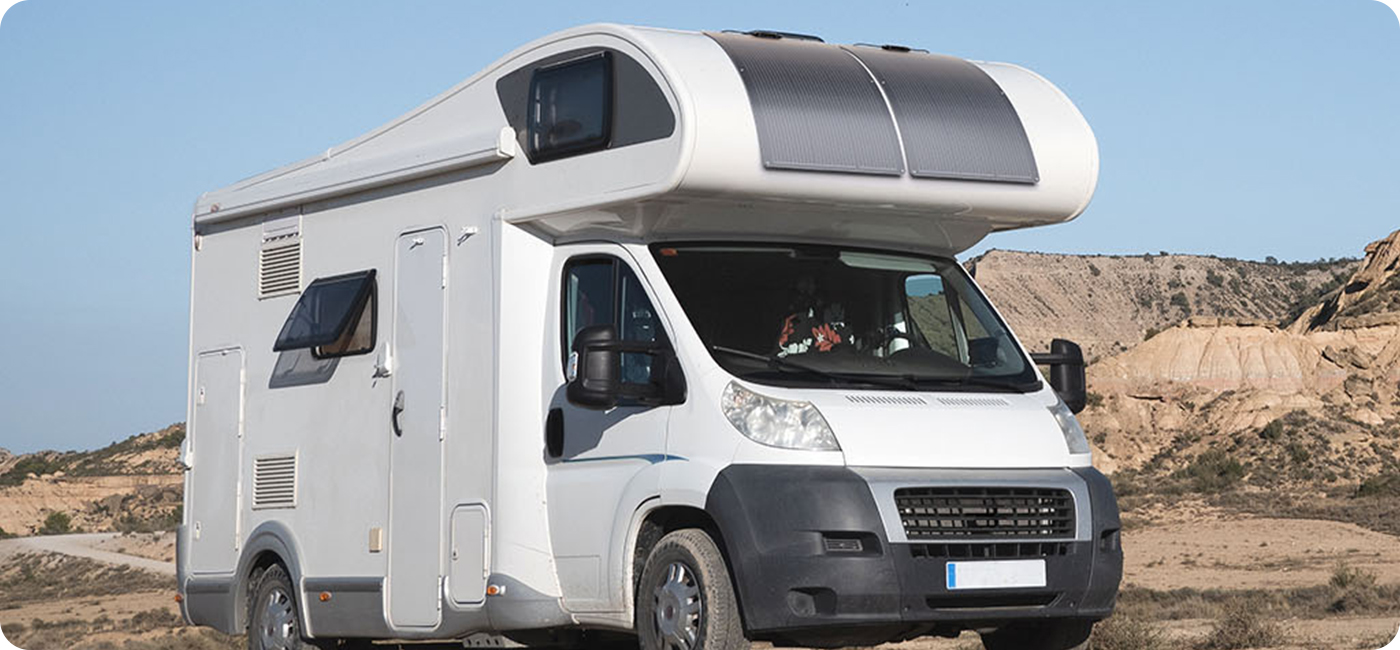

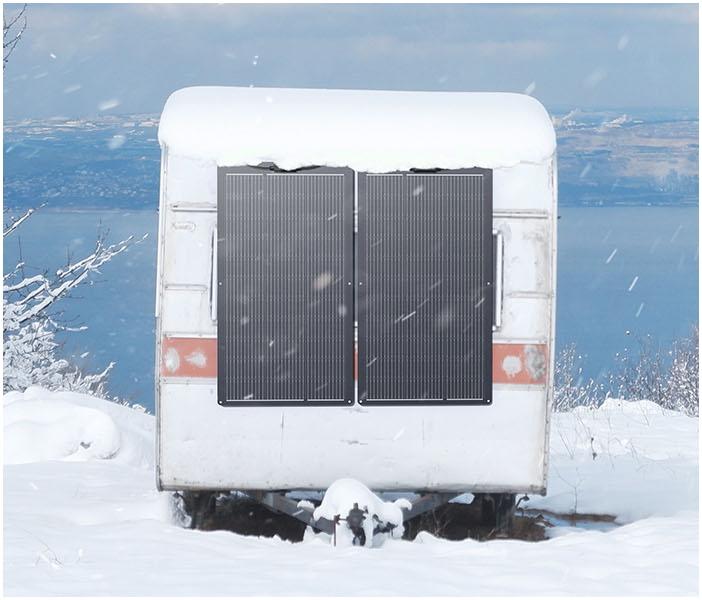

Double-Sided ETFE Flexible Solar Panel are versatile. Whether you're RVing, camping, or sailing, these solar panels can be a reliable partner in powering your power station and electronic devices.
The panels are compatible with lead-acid, lithium-ion ternary, and LiFePO4 batteries. Connects directly to solar-compatible devices with preinstalled connectors.If you are a traveling, RVing, or camping enthusiast, don't miss this solar panel. It will bring a lot of convenience so that you can continue traveling without having to worry about running out of power.

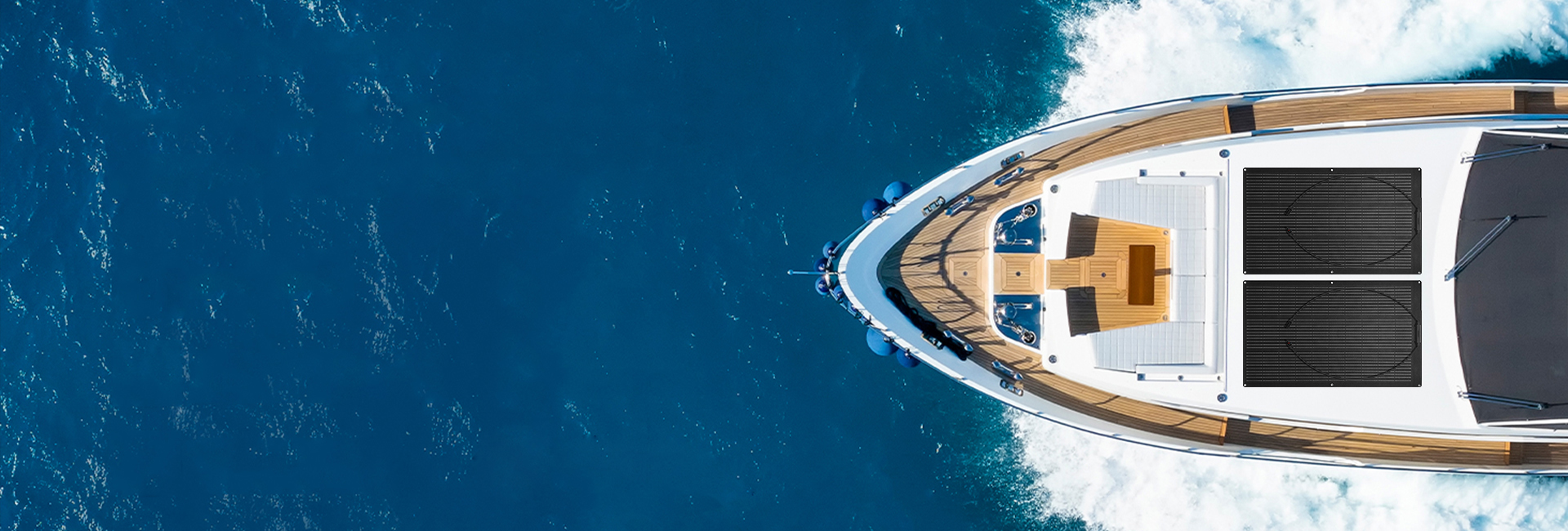

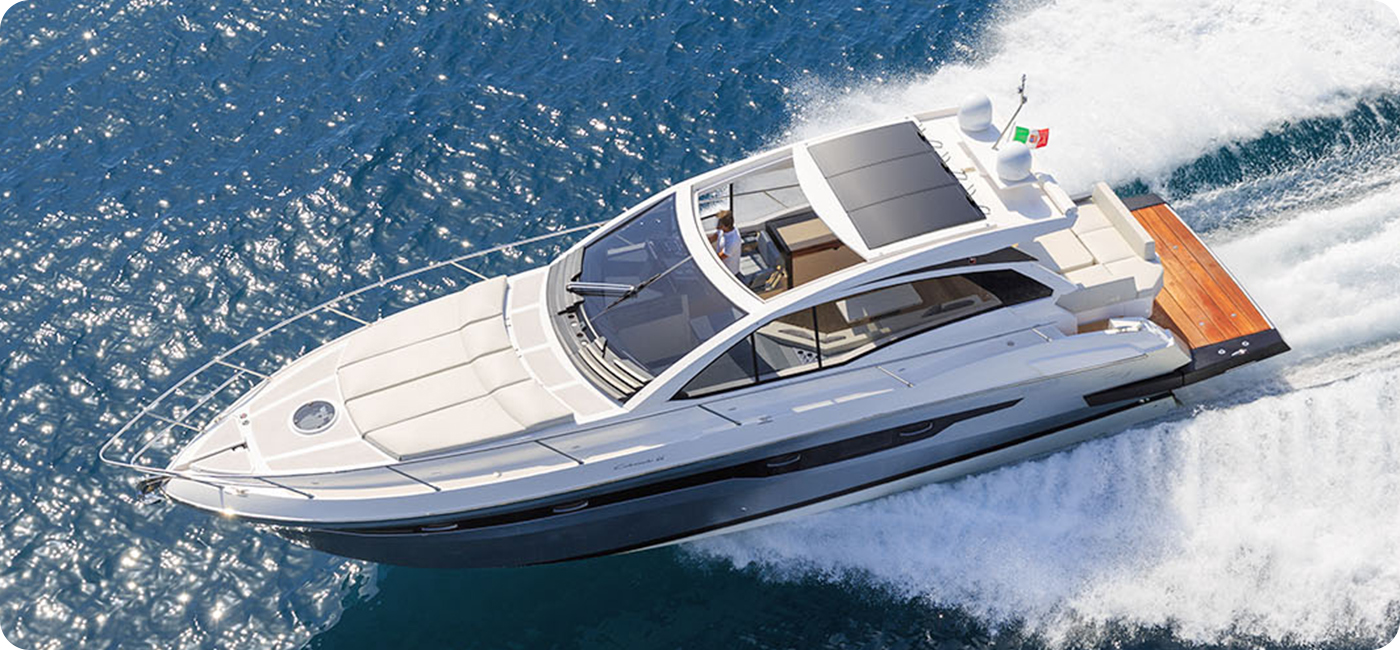

Double-Sided ETFE photovoltaic panels are ideal for outdoor living and are designed for extreme environments such as yachts and RVs. it features a double-sided ETFE surface that absorbs more sunlight into electricitv and provides durable and weatheroroof protection. You can use your solar panel in any type of environment without any worries.
Application
---We are producing customized products for more application scenarios---
