High Power Foldable Solar panel with a bracket for using directly in thegarden, to get more light and achieve maximum output power, alsodirectly plugged into the mains for use.You don't need to worry when you decide to take it out on a trip Adjustto your requirements at any time When you match the energy storage,.you can convert the connection line or series parallel according to thedifferent connection methods of energy storage. When you charge theRV battery, you can also use it with the controller.Any application scenario you can consider, this product can meet yourindividual requirements, plug-and-play approach to provide you withgreat convenience.
Certifications
Since its establishment, we have always put product quality first andcarefully listened to and adopted customer suggestions, this enablesus to have a qualified team experienced at R&D, production, quality control, and services.
The High Power Foldable Solar Panel is designed for large-capacity power station, it can fill up the power station faster, the product has passed CE, ROHS FCC LVD, each product supply 2 years warranty.
Product Specifications
SR-Fold-HP400W | SR-Fold-HP500W | SR-Fold-HP600W | |
Model | 图片 | 图片 | 图片 |
Folding Number | 4pcs | 4pcs | 4pcs |
Cells Efficiency | >23.2% | >23.2% | >23.2% |
Max Power(Wp) | 400W | 500W | 600W |
Max Power Voltage/Vmp | 34V | 36V | 34V |
Max Power Current/Imp | 11.76A | 13.8A | 17.64A |
Open Circuit Voltage/Voc | 40.8V | 43.2V | 40.8V |
Short Circuit Current/Isc | 12.93A | 15.1A | 19.4A |
Weight | 14.85kg | 16.8kg | 22kg |
Outlet | MC4 / Anderson | MC4 / Anderson | MC4 / Anderson |
Expand Size | 930*590*60mm | 1060*590*60mm | 930*590*70mm |
Folded Size | 2340*930*30mm | 2370*1060*30mm | 3510*930*30mm |
Max Power Tolerance | ±3% | ±3% | ±3% |
The maximum system voltage | 200V DC | 200V DC | 200V DC |
Color | Black | Black | Black |
Remarks | SUNRAY offer customize service,please refer to our website or ask workers for more sizes and the latest parameters. | ||

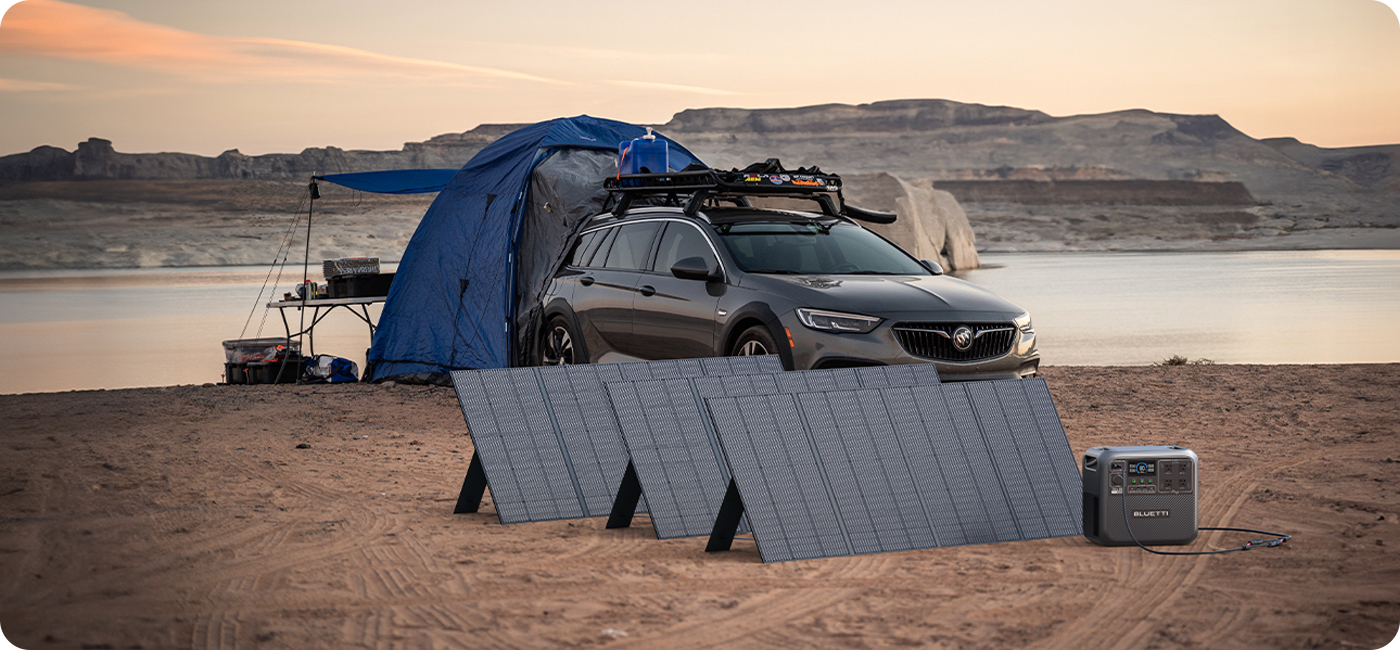

Rapid Energy for RV Adventures

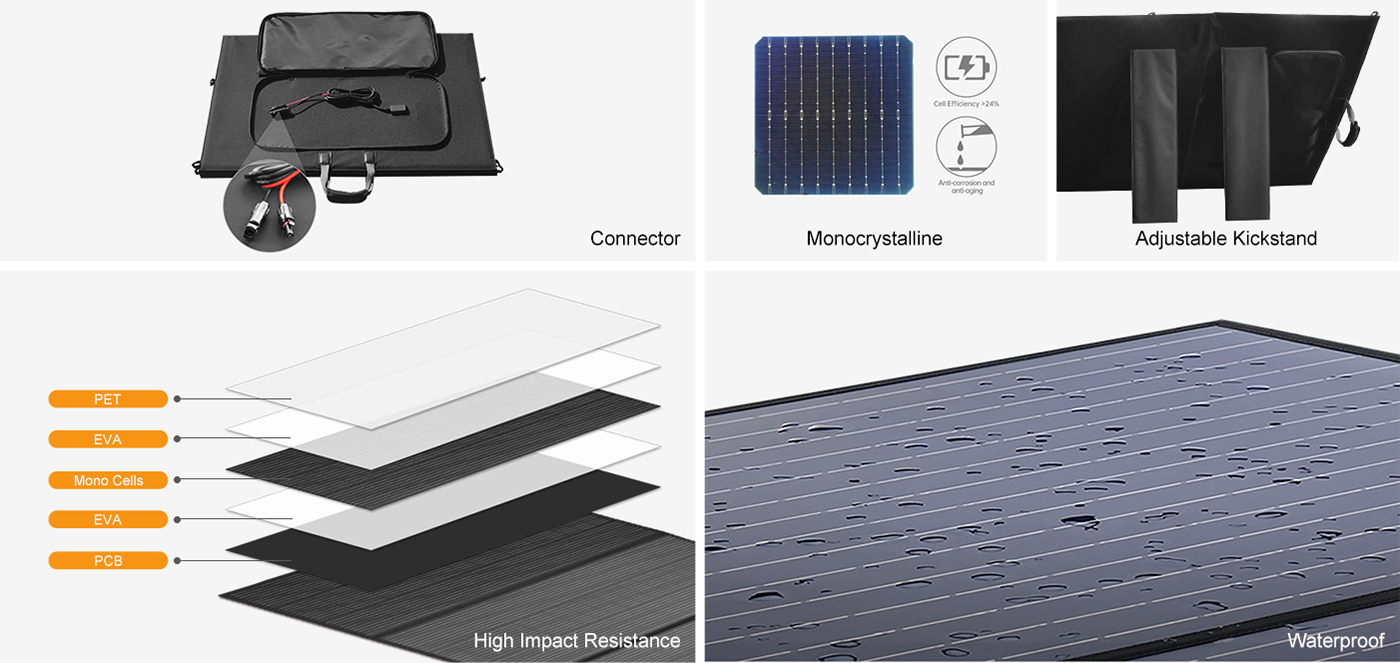

Tech-Driven Performance: Boasting 400W-600W output and 23%+ efficiency, these panels charge power stations 50% faster. Built with industrial-grade MC4 ports and anti-reflective coating, they sustain RVs and off-grid setups effortlessly—rain, dust, or blazing sun. Compact, rugged, and ready for endless miles.

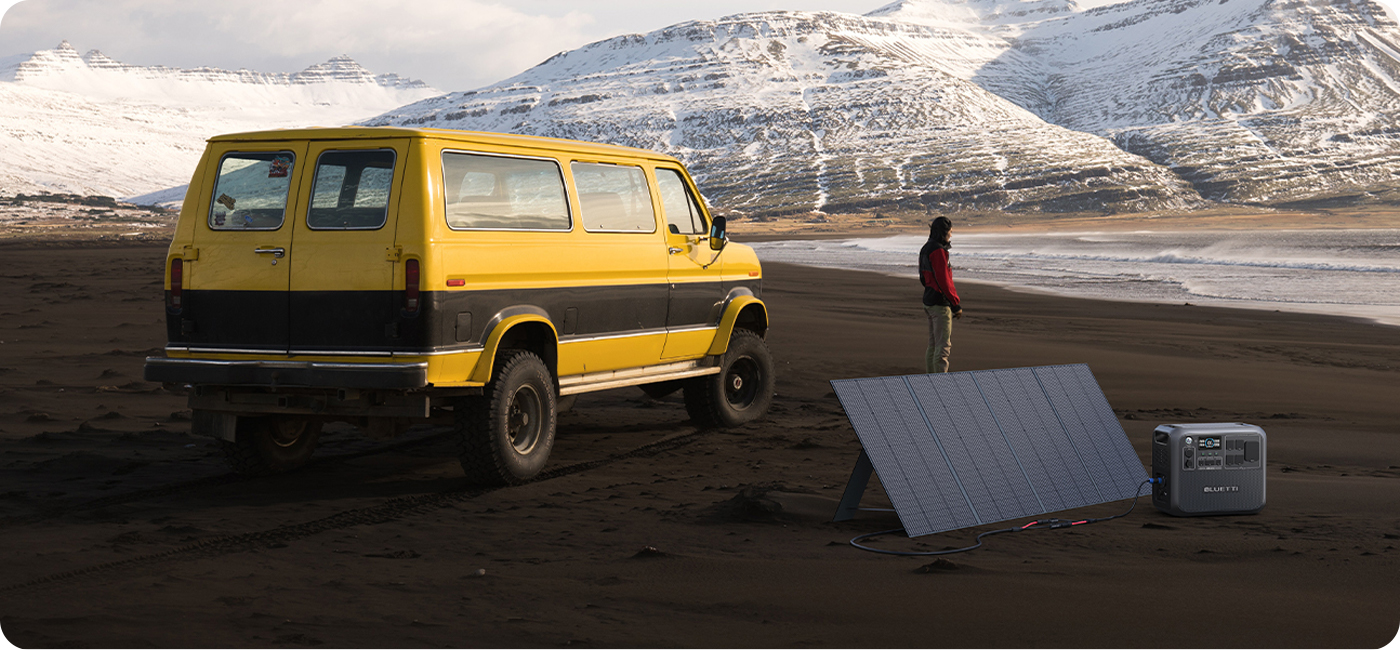

Unleash Limitless Travel Freedom
Combining high-wattage output and ultra-fast charging, these panels rapidly refill power banks, supporting cameras, drones, and gear. Compact folding design and weather-resistant build let adventurers harness sun power anywhere—mountains, deserts, or beaches. Stay unplugged, stay limitless.

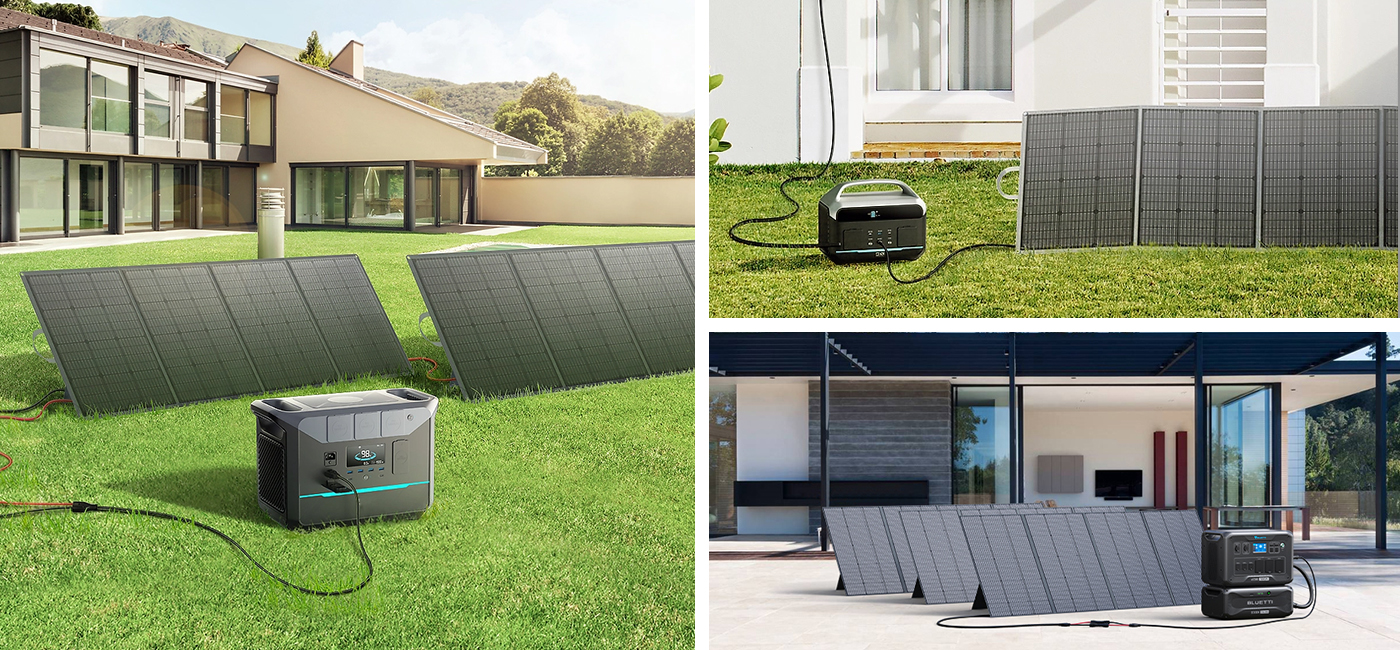

Application
---We are producing customized products for more application scenarios---
